Goulds Constant Pressure Systems
The Balanced Flow is a variable speed, constant pressure controller designed exclusively for submersible well pumps. It provides smooth control for residential submersible water systems which typically uses a larger tank and switch. The controller monitors the pressure in the system and adjusts the pump speed to maintain a constant pressure. The Balanced Flow also monitors the motor current draw, voltage, temperature, and loss of pressure. It's design is simple and rugged.
The Gould ProPak has several advantages over a traditional submersible pump system:
- City-like water pressure at every faucet no matter the demand
- Lower electricity usage by 50% due to the controller converting single phase input to 3 phase
- 0-100 PSI Pressure Setting with finger controlled adjustments
- Only a small inline pressure tank is needed, no large bulky floor stand models are required
- Wall mounted controller saves space and is Nema 3 rated and can be mounted outside
- Designed for continuous operation: Ideal for larger homes, irrigation systems, tight installation clearance issues, and geothermal applications.
- High quality Goulds GS stainless steel pump with sand and abrasion resistant design
- Self Diagnostic Controls check for Dry Well Ground Fault, Short Circuit Disconnected Lead, High Pressure Sensor, Temperature Fault
- Smaller gauge wire is required
Goulds ProPak Kit include:
- CentriPro Three Phase Motor 1.5 – 5 HP, 230 V
- CentriPro Aquavar SOLO™ Controller with Transducer
- Goulds Pumps GS Water End (pump)
Production Rate @ 60 PSI Performance Chart 7 GPM for a pump set at 330 ft. *Shipping Included!
10 GPM for a pump set at 240 ft. *Shipping Included!
18 GPM for a pump set at 100 ft. *Shipping Included!
7 GPM for a pump set at 500 ft. *Shipping Included!
10 GPM for a pump set at 380 ft. *Shipping Included!
10 GPM for a pump set at 345 ft. *Shipping Included!
18 GPM for a pump set at 170 ft. *Shipping Included!
25 GPM for a pump set at 100 ft. *Shipping Included!
7 GPM for a pump set at 690 ft. *Shipping Included!
10 GPM for a pump set at 520 ft. *Shipping Included!
18 GPM for a pump set at 285 ft. *Shipping Included!
25 GPM for a pump set at 170 ft. *Shipping Included!
33 GPM for a pump set at 85 ft. *Shipping Included!
18 GPM for a pump set at 550 ft. *Shipping Included!
25 GPM for a pump set at 395 ft. *Shipping Included!
33 GPM for a pump set at 250 ft. *Shipping Included!
*Shipping Included! *Shipping Included! *Shipping Included! *Shipping Included!
Goulds Constant Pressure Submersible Pump Systems
Model
Motor HP
Avg. GPM
Price

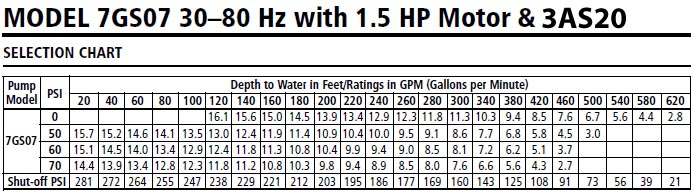

7GP0715
1.5 HP
7 GPM
Click here for price

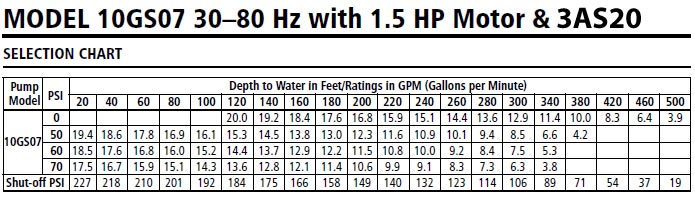

10GP0715
1.5 HP
10 GPM
Click here for price

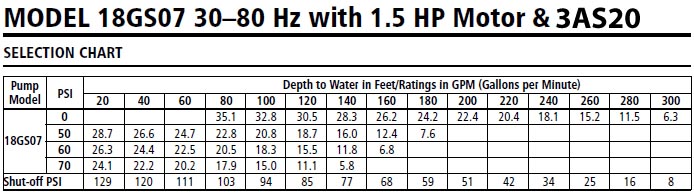

18GP0715
1.5 HP
18 GPM
Click here for price

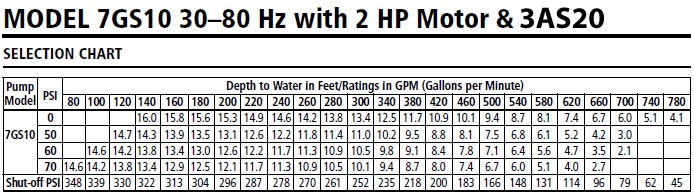

7GP1020
2 HP
7 GPM
Click here for price
10GP2020
2 HP
10 GPM
Click here for price
10GP1020
2 HP
10 GPM
Click here for price

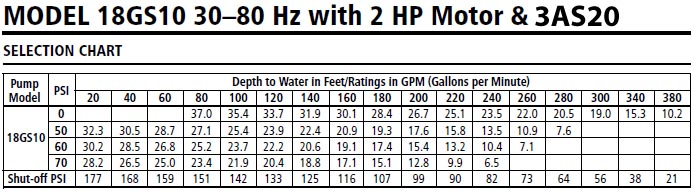

18GP1020
2 HP
18 GPM
Click here for price

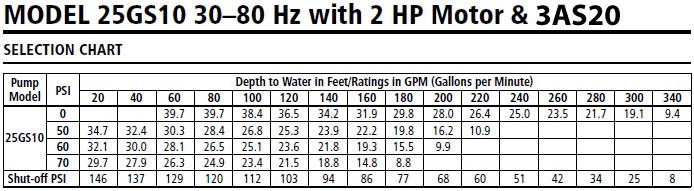

25GP1020
2 HP
25 GPM
Click here for price

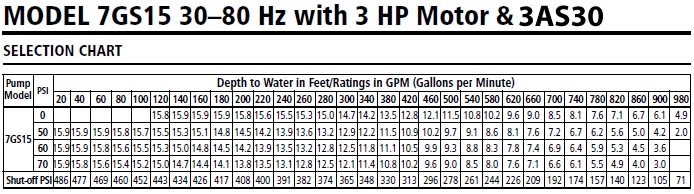

7GP1530
3 HP
7 GPM
Click here for price

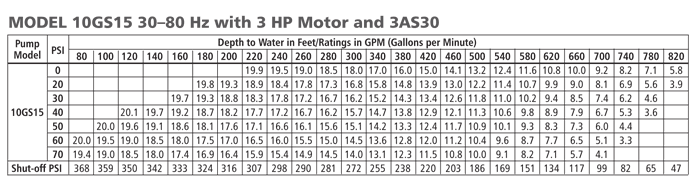

10GP1530
3 HP
10 GPM
Click here for price

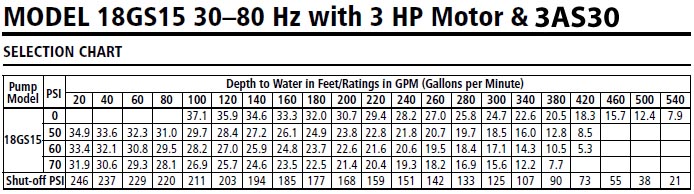

18GP1530
3 HP
18 GPM
Click here for price
25GP1530
3 HP
25 GPM
Click here for price
35GP1530
3 HP
33 GPM
Click here for price

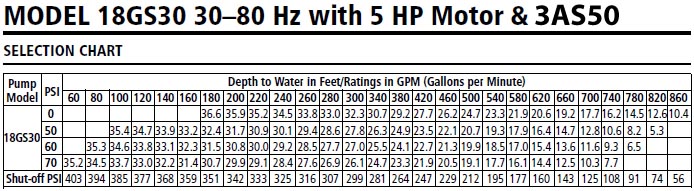

18GP3050
5 HP
18 GPM
Click here for price
25GP3050
5 HP
25 GPM
Click here for price
35GP3050
5 HP
33 GPM
Click here for price
Stainless Steel Installation Packages with Pressure
Tank
Model
Description
Price
CPSS-TPAK-101
CPSS-TPAK-102
CPSS-TPAK-103
CPSS2-TPAK-103
