Model Number
: 433-S50X
Manufacturer
: AiRaider
Warranty
: 2 Year Limited

AiRaider 433-S Series Diffused Bubble Radon Aeration, 115V, 1/2HP (S50X)

$3,795.00

The "S" stands for Submersible Pump!

AIRaider 433-S Series diffused bubble aeration systems have a built-in submersible pump for easier installation, a smaller footprint and quieter operation. Other features include self-priming pump set up, fail-safe floats and valves and more.
Removes up to 99+% of radon.

New design features include:

  • High quality 1/2HP Starite submersible pump
  • Self-priming pump set up
  • Failsafe floats and valves
  • Quick-connect shark bite fittings
  • Tank made of FDA approved materials
  • Versatile electrical connections: The electrical panel can be mounted on either side to allow left or right connections.
  • Internal tank design: With removable baffles, the new design improves upon the 433-S series already easy cleaning and maintenance.
  • Lid sealing method:  The familiar 433-S lid clips are replaced by molded in brass t-nuts and stainless steel machine screws to provide an even better, mechanically positive seal.
  • Amtrol WX-202 20 Gallon Pressure Tank and No-Lead Tank Tee Kit (NL-T1-M)

AIRaider 433-S Series diffused bubble aeration systems have a built-in submersible pump for:

  • Easier Installation
  • No separate pump and pipes to install.
  • Smaller Footprint
  • It can even be installed in a closet!
  • Quieter Operation
  • The built-in pump reduces audible level of pump noise.




Please Note: System shown with additional pipe & fixtures. May require additional parts for installation. Unit might slightly vary in size, shape or styles.

Availability: Usually ships within 4-7 days

OUR PRICE $3,795.00
*Free Shipping‚Äč

Description

Details

The "S" stands for Submersible Pump!

AIRaider 433-S Series diffused bubble aeration systems have a built-in submersible pump for easier installation, a smaller footprint and quieter operation. Other features include self-priming pump set up, fail-safe floats and valves and more.
Removes up to 99+% of radon.

New design features include:

  • High quality 1/2HP Starite submersible pump
  • Self-priming pump set up
  • Failsafe floats and valves
  • Quick-connect shark bite fittings
  • Tank made of FDA approved materials
  • Versatile electrical connections: The electrical panel can be mounted on either side to allow left or right connections.
  • Internal tank design: With removable baffles, the new design improves upon the 433-S series already easy cleaning and maintenance.
  • Lid sealing method:  The familiar 433-S lid clips are replaced by molded in brass t-nuts and stainless steel machine screws to provide an even better, mechanically positive seal.
  • Amtrol WX-202 20 Gallon Pressure Tank and No-Lead Tank Tee Kit (NL-T1-M)

AIRaider 433-S Series diffused bubble aeration systems have a built-in submersible pump for:

  • Easier Installation
  • No separate pump and pipes to install.
  • Smaller Footprint
  • It can even be installed in a closet!
  • Quieter Operation
  • The built-in pump reduces audible level of pump noise.

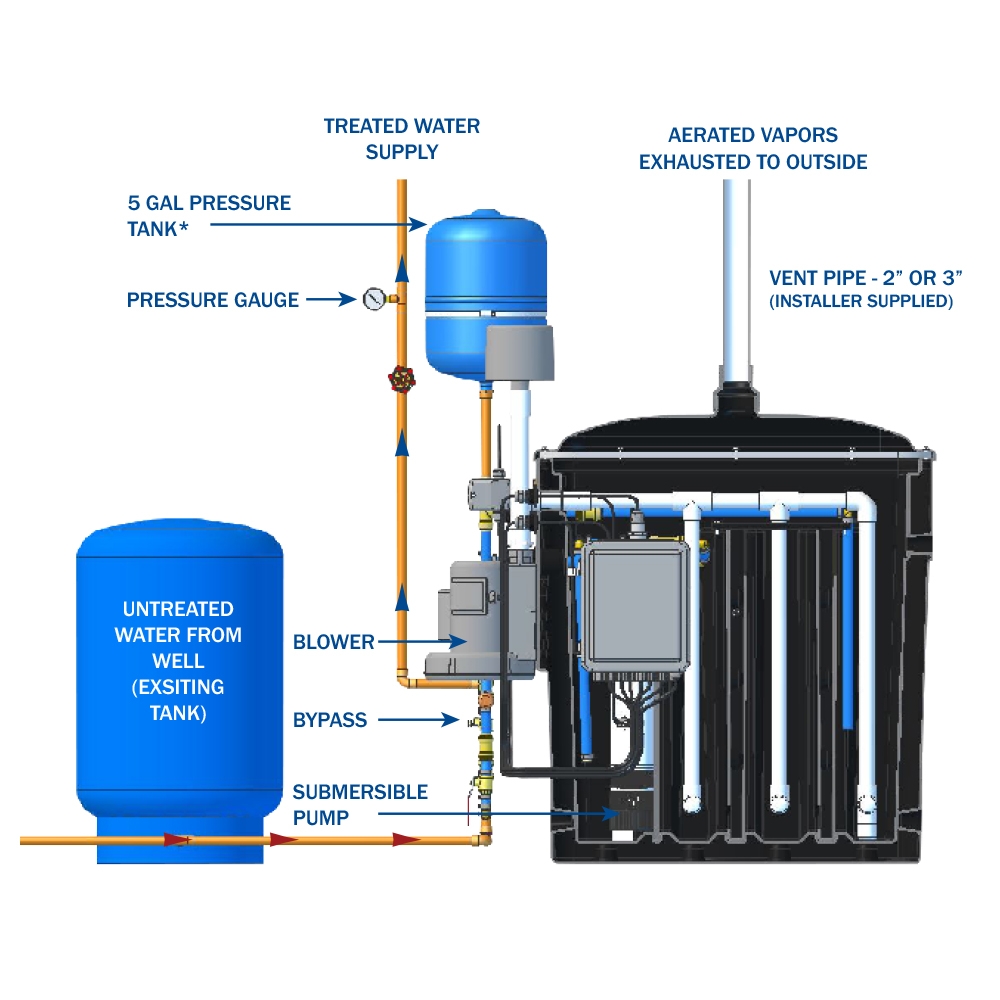

Please Note: System shown with additional pipe & fixtures. May require additional parts for installation. Unit might slightly vary in size, shape or styles.

Features and Accessories

Product Features

Blower: Regenerative Blower 3500 RPM 0.5HP 600 Watt
Pump: Integral Starite Submersible Pump
Solenoid Valves: Normally Closed Metal Housed Class F120 VAC BunaN Seal Brass Valve Body ¾” NPT
Float Switches: Three Floats: Middle Float to Turn System On/Off; Upper Float Guards against Overflow; Lower Float Protects Pump from Potential "Run Dry" Condition
Electrical Requirements: 433-S50X 115VAC: Use a 20amp breaker and, at minimum, 12/2 with ground electrical wire
Recommended Flow: Up to 16 GPM
Radon Reduction: Up to 99+%
Water Inlet/Outlet Connections: ¾” Quick-Connect Shark Bite to Suit ¾” Pex or Copper
Vent Line: 2” or 3” PVC Pipe (Not included)
Air Inlet: Via 10 Micron Filter
Tank: Double Wall Insulated NSF Rated for Potable Water
Tank Operating Capacity: Up to 42 Gallons (Total Internal Volume 65 gallons)
Pressure Tank (Included):  Amtrol WX-202 20 Gallon Pressure Tank and No-Lead Tank Tee Kit (NL-T1-M)
Overall Dimensions: 35" H x 22" W x 34.5" L

Additional Info

Specifications

Additional Info

Specifications
Manufacturer AiRaider
Model # 433-S50X
Shipping Weight 202
Warranty 2 Year Limited
